As pressure for fuel savings and emission reduction mounts, the need for lightweight aluminum components increases throughout the transportation industry.  An efficient place to begin vehicle weight reduction is to replace heavier steel wheels with lightweight forged aluminum wheels.

The Process


The Process Aluminum is heated to a super plastic state and pressed into the basic wheel shape on our 6000 ton forging press. This hot forming begins the strength building process.
The Process The Process The rim is then spin formed from the basic wheel. This additional "cold work forming" enhances the wheel's strength by aligning the aluminum's grain structure along the contour of the wheel.
The Process
The wheel is then finish machined to precise dimensions.  After machining, the wheel surface is either kept at our standard PCDiamond cut machined surface or polished on the inner, outer, or both surfaces. The Process

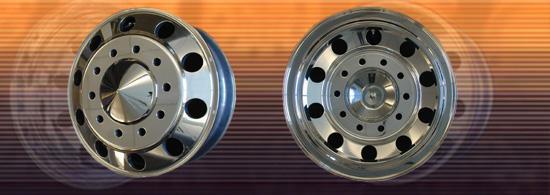

The Result

The Result

The Continental Forged Truck Wheel

The Aluminum Advantage

Market research and laboratory tests have confirmed multiple advantages of high strength forged aluminum truck wheels over the steel alternative:

  • Forged aluminum truck wheels are up to 37% lighter than the steel alternative.
  • Reduced vehicle weight results in measurable fuel savings
  • Reduced vehicle weight results in increased payload capacity up to 600 lbs.
  • Forged aluminum truck wheels resist corrosion better than the steel alternative
  • Forged aluminum truck wheels yield higher truck resale value
  • Reduced weight aluminum wheels yield higher fatigue strength than the steel alternative
  • Forged aluminum truck wheels yield increased tire life through cooler operating temperatures.

Continental Forged Aluminum Wheel Specifications

No.

Description

Mounting/
Hub Diameter

Bolt Pattern/
Bolt Cicle Dia.

Max.
Load

Offset

Weight

1

22.5"x8.25" 15 deg. DC

Hub/q220.1

10/q285.75

7300

5.8

51

2

22.5"x8.25" 15 deg. DC

Hub/q221.1

8/q275.00

7300

5.8

51

3

22.5"x8.25" 15 deg. DC

Stud/q8.73

10/q11.25

7200

5.8

52

4

22.5"x8.25" 15 deg. DC

Hub/q8.67

10/q11.25

7300

5.8

51

5

24.5"x8.25" 15 deg. DC

Hub/q220.1

10/q285.75

7300

5.8

59

6

24.5"x8.25" 15 deg. DC

Hub/q221.1

8/q275.00

7300

5.7

58

7

24.5"x8.25" 15 deg. DC

Stud/q8.73

10/q11.25

7200

5.7

59

8

24.5"x8.25" 15 deg. DC

Hub/q8.67

10/q11.25

7300

5.8

59

9

17.5"x6.75" 15 deg. DC

Hub/q221.1

8/q275.00

5550

4.73

30
